1Pin Metal HV Connector
300A MAX
HVIL connector system can achieve 300A at up to 1000V at 85℃.
High mechanical strength, excellent vibration and shielding, electrical insulation. Secondary buckle to prevent accidental disconnection caused by incorrect operation, Multi misplug-proof and key position design, IP67 protection rating, touch-proof.
Applications
Products used for EV high-volatge connection between motor conntroller, battery pack, PDU, motor, quick charging device, etc

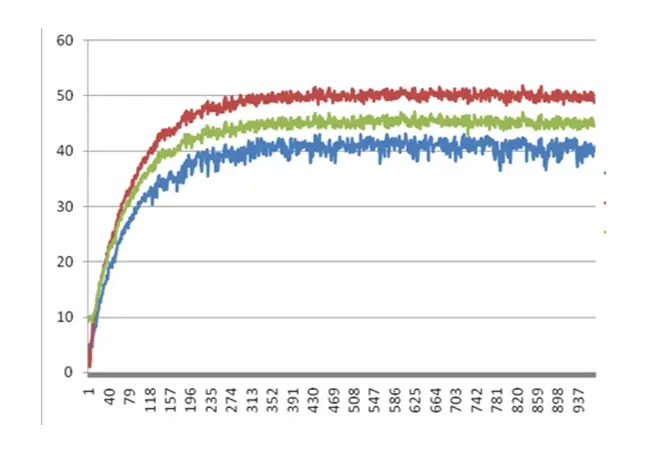

Electric Performance
- Rated volatge : 1000V
- Withstanding voltage : 3500V
- Rated current : 300A MAX (85℃)
- Insulation resistance : 5000MΩ
Mechanical Properties
- Pole: 1pole
- Mating cycles : ≥250 times
- Cross sections : 35mm² 50mm2 70mm2
- Vibration class acc. to : QC/T 1067.1-2017 V3
Environmental performance
- Operating temperature : -40℃~125℃
- Protection Degree : IP67
- Salt Spray : 96h
Materials
- Shell : Aluminum alloy
- Shielding : Copper alloy
- Insulator : PA66
- Sealing : Rubber material
