12.0 HV Connector

400A 300A 250A 1500V DC

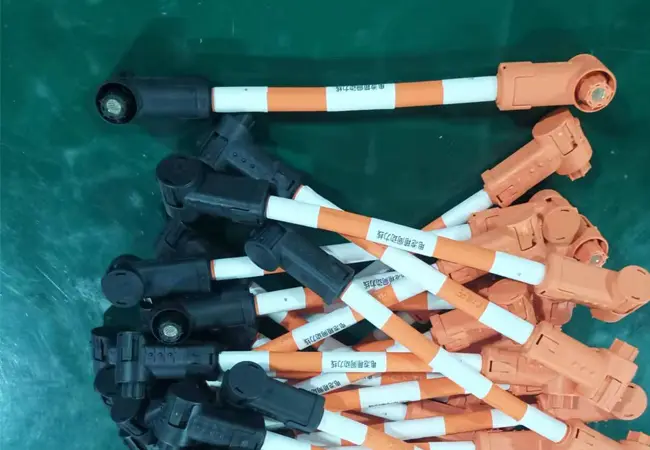

CFHV connectors for energy storage systems, which are a type of energy storage connector developed by our company specifically for the energy storage industry. It has functions such as key position and positive and negative pole color double error prevention, 360 ° arbitrary angle insertion, etc., making it convenient and fast to achieve blind insertion.

This product has been granted a patent for a 360 ° rotatable plug-in energy storage connector.

Chat Now

Features

It has a secondary locking function, which is safer and more reliable
The product supports crimping the terminal first and then threading the assembly. If the power terminal is damaged, the plug can be replaced separately without replacing the cable
It has the function of key position error prevention, and meets the requirements of 360° blind insertion. After insertion, it can realize 360° rotation to avoid user misoperation to the greatest extent
Color error proof, easy to identify battery poles
Optional protection grade IP67

Electric Performance

Rated volatge : 1500V
Withstanding voltage : 3500V
Rated current : 400A MAX (85℃)
Insulation resistance : 5000MΩ

Mechanical Properties

Pole: 1pole
Mating cycles : ≥50 times
Cross sections : 70mm² 95mm2 120mm2
Vibration class acc. to : QC/T 1067.1-2017 V3

Environmental performance

Operating temperature : -40℃~125℃
Protection Degree : IP67
Salt Spray : 96h
