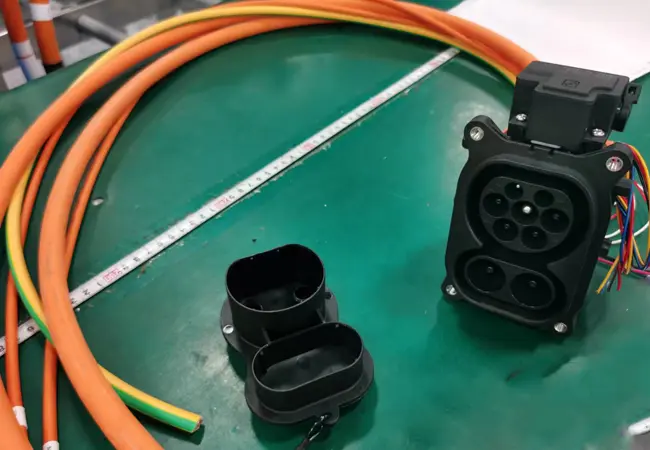

CCS 2 Socket/Inlet

500A 400A 300A 250A 200A 150A 125A 80A

The Combined Charging System inlet is an industry-standard vehicle connector for convenient charging of Plug-in Hybrid Electric Vehicles (PHEV) and Electric Vehicles. Type 2 inlets and plugs supporting AC & DC Charging standards of Europe/ Australia and increasingly global standards.

Adaptor diameter: 16mm ²/ 35mm ²/ 50mm ²/ 70mm ²/ 95mm ²/ 120mm ²/140mm2

Chat Now

Features

Meet 62196-3 IEC standards
Concise appearance, support back installation
Contact with drainage structure, improve safety performance
Safety pins insulated head design to prevent accidental direct contact with staff
Back protection class IP55
DC max charging power 500kW
AC max charging power 35kW

Electric Performance

DC input: 80A / 125A / 150A / 200A / 250A / 300A / 400A / 500A /1000V DC MAX
AC input: 16A 32A / 480VAC MAX
DC Max charging power: 500KW
Insulation resistance: >5000MΩ (DC1000V)
Terminal temperature rise.: <50K
Withstand Voltage: 3000V
Contact Resistance: 0.5m Ω Max

Mechanical Properties

Mechanical life: no-load plug in / plug out > 10000 times
Coupled insertion force: >45N<80N
Impact of external force: can afford 1m drop test and 2T vehicle run overpressure
Case Material: Thermoplastic, Flame retardant grade UL94-0
Contact bush: Cooper alloy+ thermoplastic on the top

Environmental performance

Operating temperature:-30°C – +50°C
