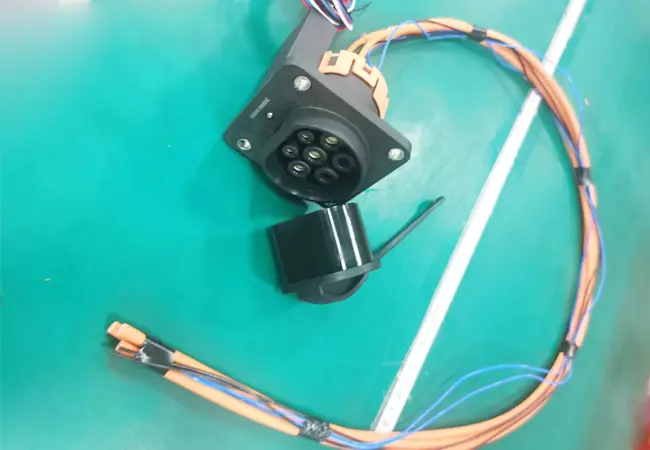

GB/T AC Socket/Inlet
32a 1p 16a 1p
Vehicle charging inlet, for charging electric vehicles (EV) with alternating current (AC), AC GB/T, GB/T 20234.2-2015, 32 A / 250 V (AC), Single wires, length: customized, locking actuator: 12 V, 4-pos., Front and rear mounting, M6, housing: black, A protective cap is supplied as standard for the DC contacts.
Adaptor diameter: 3*6mm2 / 3*2.5mm2
Features
- Meet 62196-3 IEC standards
- Concise appearance, support back installation
- Contact with drainage structure, improve safety performance
- Safety pins insulated head design to prevent accidental direct contact with staff
- Back protection class IP55
- AC max charging power 11kW
Electric Performance
AC input: 16A 32A / 250VAC MAX
Insulation resistance: >5000MΩ (DC1000V)
Terminal temperature rise.: <50K
Withstand Voltage: 3000V
Contact Resistance: 0.5m Ω Max
Mechanical Properties
Mechanical life: no-load plug in / plug out > 10000 times
Coupled insertion force: >45N<80N
Impact of external force: can afford 1m drop test and 2T vehicle run overpressure
Case Material: Thermoplastic, Flame retardant grade UL94-0
Contact bush: Cooper alloy+ thermoplastic on the top
Environmental performance
Operating temperature:-30°C – +50°C
