Portable EV Charger
3.5KW 7KW

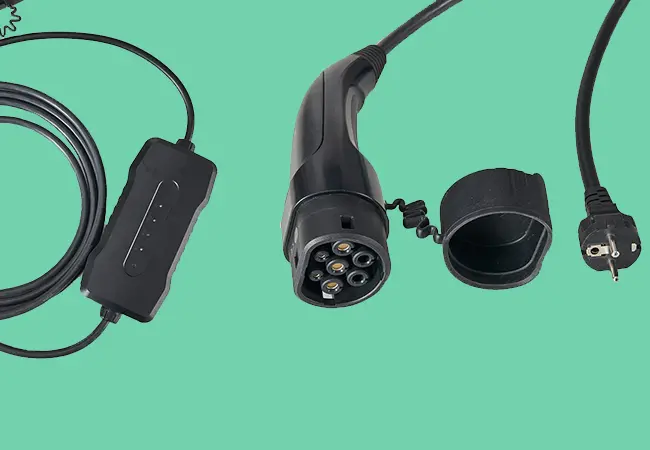

Charge your Type 2 electric vehicle at your home, office or anywhere that has a 16A 3 pin plug socket (BS 1363). Our portable chargers (also known as a granny charger or home charger) are compatible with electric and hybrid vehicles of 3.5kw (16A) and above charging capacity Our home chargers are backed by a 1 year warranty. Should you need the Type 1 version of this home charger then please go to our Type 1 portable charger with 3 pin Type G (UK) plug.
Features
- Meet 62196-3 IEC standards
- Concise appearance, support back installation
- Contact with drainage structure, improve safety performance
- Safety pins insulated head design to prevent accidental direct contact with staff
- Back protection class IP55
- AC max charging power 7kW
Electric Performance
- AC input: 16A 32A / 250VAC MAX
- Insulation resistance: >5000MΩ (DC1000V)
- Terminal temperature rise.: <50K
- Withstand Voltage: 3000V
- Contact Resistance: 0.5m Ω Max
Mechanical Properties
- Mechanical life: no-load plug in / plug out > 10000 times
- Coupled insertion force: >45N<80N
- Impact of external force: can afford 1m drop test and 2T vehicle run overpressure
- Case Material: Thermoplastic, Flame retardant grade UL94-0
- Contact bush: Cooper alloy+ thermoplastic on the top
Environmental performance
Operating temperature:-30°C – +50°C
Control Box Function
- Leakage protection
- Overvoltage under-volatge protection
- Over load protection
- Lightning protection
