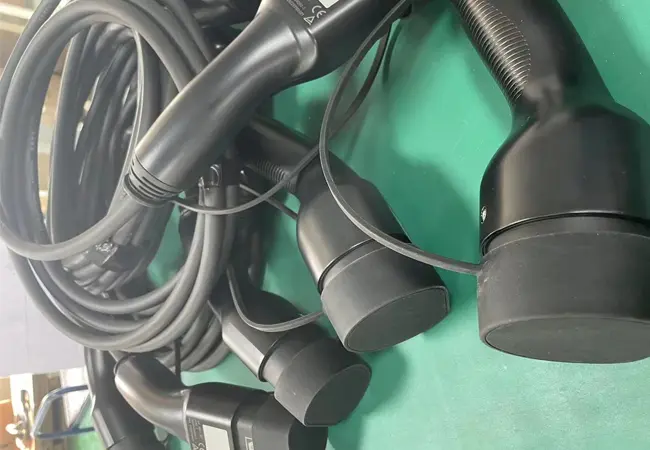

Type2 EV Charging Cable
3.5KW 7KW 11KW 22KW MODE3
Type 2 EV charging cable to connect your hybrid vehicle or electric car, motorbike or van to an EV charging station or to a charging point installed at your home or office. With this Type 2 to Type 2 charging cable you can charge your electric vehicle with up to 22kW, depending on the vehicle battery and the charging station you use. We supply quality EV charger cables, available to buy for all electric vehicle types.
Mode 3 EV charger compatible with 16A and 32A plugin-in EV and hybrid vehicles.
Features
- Meet 62196-3 IEC standards
- Concise appearance, support back installation
- Contact with drainage structure, improve safety performance
- Safety pins insulated head design to prevent accidental direct contact with staff
- Back protection class IP55
- AC max charging power 22kW
Electric Performance
- AC input: 16A 32A / 250VAC 480VAC MAX
- Insulation resistance: >5000MΩ (DC1000V)
- Terminal temperature rise.: <50K
- Withstand Voltage: 3000V
- Contact Resistance: 0.5m Ω Max
Mechanical Properties
- Mechanical life: no-load plug in / plug out > 10000 times
- Coupled insertion force: >45N<80N
- Impact of external force: can afford 1m drop test and 2T vehicle run overpressure
- Case Material: Thermoplastic, Flame retardant grade UL94-0
- Contact bush: Cooper alloy+ thermoplastic on the top
Environmental performance
Operating temperature:-30°C – +50°C
