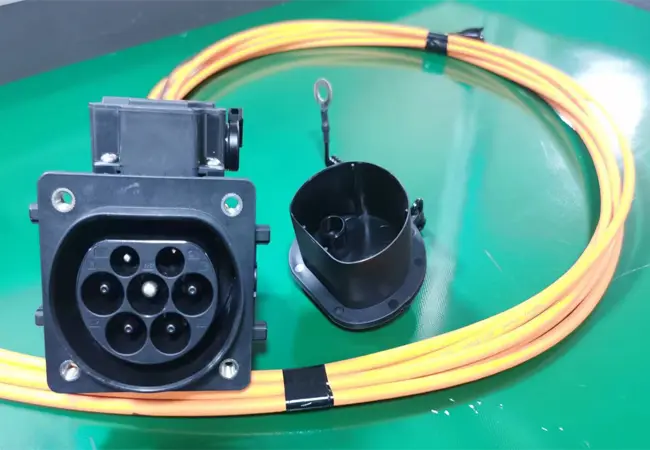

Type 2 Socket/Inlet
32A 3p 32a 1p 16a 3p 16a 1p
Vehicle charging inlet, for charging electric vehicles (EV) with alternating current (AC), AC type 2, IEC 62196-2, 32 A / 250 V (AC) 480 V (AC), Single wires, Thress wires, length: Customized, locking actuator: 12V 24V optional, 4-pos., Front and rear mounting, M6, housing: black.
A protective cap is supplied as standard for the AC contacts.
Adaptor diameter: 5*6mm ² / 5*2.5mm ² / 3*6mm2 / 3*2.5mm2
Features
- Meet 62196-3 IEC standards
- Concise appearance, support back installation
- Contact with drainage structure, improve safety performance
- Safety pins insulated head design to prevent accidental direct contact with staff
- Back protection class IP55
- AC max charging power 22kW
Electric Performance
AC input: 16A 32A / 480VAC MAX
Insulation resistance: >5000MΩ (DC1000V)
Terminal temperature rise.: <50K
Withstand Voltage: 3000V
Contact Resistance: 0.5m Ω Max
Mechanical Properties
Mechanical life: no-load plug in / plug out > 10000 times
Coupled insertion force: >45N<80N
Impact of external force: can afford 1m drop test and 2T vehicle run overpressure
Case Material: Thermoplastic, Flame retardant grade UL94-0
Contact bush: Cooper alloy+ thermoplastic on the top
Environmental performance
Operating temperature:-30°C – +50°C
Product Services
Get discounted prices
Get customized solutions
OEM/ODM service
What would you like to customize ? Welcome to contact us.
